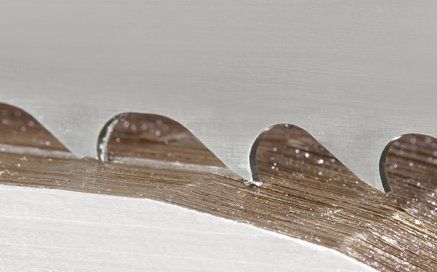

BI-METAL BAND SAW BLADES
Combine the highest cutting efficiency with incredible durability.
The teeth, in cobalt high-speed steel (M42), tempered to 67-69 HRc.
Suitable for large-lot production. Suitable for a wide selection of materials like steels above 1200 N/mm² and stainless steels up to difficult to cut materials.
Supplied in coils of 100 ft (30.5 m), 250 ft (76 m), 328 ft (100 m) production coils, or in endless welded bands.
M42 - Spez V
All purpose blade for material dimensions from 20 to 80 mm maximal contact lenght.
Variable tooth pitch - rake angle 0°
Superior, because:
Cost reduced by using 3% Cr-Backer and optimised production.
For general purpose up to 45° Rockwell materials.
Engineered for:
• profiles and solid materials
• all steels up to 45 HRc
• demanding workshop operations
M42 - Spez Sup V
All purpose blade for material dimensions from 50 to 350 mm maximal contact lenght.
Variable tooth pitch - rake angle 10° positive
Superior, because:
Cost reduced by using 3% Cr-Backer and optimised production.
For general purpose up to 45° Rockwell materials.
Engineered for:
• profiles and solid materials
• all steels up to 45 HRc
• demanding workshop operations
M42 - Spez ALU
Easy cuts in light metals.
Hook (P); 10° positive rake angle, extra wide set
Superior, because:
Tooth tips made of HSS M42 / material no. 1.3247. The positive hook tooth with an extra heavy set performs at all dimensions. Smooth cuts and tool life that convinces.
Engineered for:
• pure aluminium and aluminium alloys
• all dimensions
M42 - Construction
Outstanding performance for Heavy Fabricators. Variable tooth; 6° rake angle, extra wide set
Superior, because:
Tooth tips made of HSS M42 / materials no. 1.3247. The variable tooth with slightly positive rake angle and extra heavy group-set shows excellent performance on H-beams and similar shapes. The M42-Construction avoids blade pinching in beams with inside tension, or in poorly supported profiles. For 90° and miter cutting.
M42 - N
All purpose blade for small dimension solid steel.
Standard teeth (S); 0° rake angle
Superior, because:
Tooth tips of HSS M42 / material no. 1.3247. The standard tooth with 0° resp. slightly positive rake angle combined with a standard-raker or wavy set is distinguished to cut short chipping materials and light wall thicknesses. For smooth and burr-free cuts.
Engineered for:
• common steel qualities up to 1400 N/mm² tensile strength
• non ferrous metals
• cross sections up to approx. 100 mm (4 inch)
• contour cutting operations
M42 - K
The most various blade. Hook tooth with 10° positive rake angle.
Superior, because:
Tooth tips of HSS M42. The positive hook tooth in combination with raker set is warrenty for the most efficient cut in long chip solid material.
Engineered for:
• all steels up to 45° HRc
• all workpiece dimensions
• non-ferrous metals
• contour cuts
M42 - V
BEST SELLER
The Structural-Professional blade for efficient cutting on manual machines.
Variable tooth pitch, 0° rake angle
Superior, because:
Tooth tips of HSS M42 / material no. 1.3247. The variable tooth with 0° rake angle with a special groupset cuts even lightest sections with less vibrations. Short chipping materials are cut without a problem. The M42-V band for long life and low cost cutting.
Engineered for:
• common steel qualities up to 1400 N/mm² tensile strength
• non ferrous structurals
• single and bundle cuts
• tubes and structurals with light or medium walls
• sheet metal on vertical band saw machines
M42 - Sup V
BEST SELLER
Most efficient blade for production operation cutting.
Variable tooth pitch, 10° positive angle.
Superior, because:
Tooth tips made of HSS M42 / material no. 1.3247. The variable tooth with a positive rake angle with a special group-set cuts solid materials as well as heavy wall structurals and tubing at fast cutting rates, with a smooth surface.
Engineered for:
• common steel qualities up to 1400 N/mm² tensile strength
• non ferrous structurals
• cross sections more than approx. 100 mm (4 inch)
• heavy wall structurals
• single and bundle cuts
M42 - BIGDIM SC
Special blade for BIG DIMensions, short chipping materials
New developed tooth design in combination with a special setting is the warranty for an optimum in cutting performance and tool life.
Superior, because:
The combination of tooth design and setting allow user to cut big dimension material in a short time for a low cost price.
Engineered for:
• steels with high tensile strenght
• nickel base alloys
• brittle and annealed materials
• short-chipping materials
Also available as MPM.
M42 - BIGDIM LC
Special blade for BIG DIMensions, long chipping materials
New developed tooth design in combination with a special setting is the warranty for an optimum in cutting performance and tool life.
Superior, because:
The combination of tooth design and setting allow user to cut big dimension material in a short time at a low cost price.
Engineered for:
• rust and acid-resistant steels
• steels with high tensile strenght
• nickel base alloys
• long-chipping materials
• tough materials
Also available as MPM.
M42 - High Performance
Top performance blade, for difficult cutting applications
16° positive rake angle and special setting geometry
Superior, because:
Borazone ground teeth for the best accurancy cutting finish with a bi-metal M42 blade you can get. Because of the optimum in chip division (trapeze tooth form) in combination with extreme positive tooth design the fastest cut you can do with a bi-metal M42 blade.
Engineered for:
• rust and acid-resistant steels
• titanium alloys
• nickel base alloys
• high tensile strength steels
MPM - Sup V
Extra wear resistant teeth for hard materials industrial cutting.
Variable tooth pitch, 10° positive angle, MPM-steel
Superior, because:
Tooth tips made of powder-metallurgical produced steel (MPM).
The best possible combination between 10° positive variable teeth, extrem hard MPM steel
and the geometry of group set teeth allows to efficiently cut difficult to machine steels.
Engineered for:
• rust- and acid-resistant steels of medium and large dimensions
• steels up to 50 HRc.
• nickel base alloys (Inconel, Hastelloy, Nimonic)
• titanium and special bronze materials
MPM - BIGDIM SC
Special blade for BIG DIMensions. MPM-steel.
New developed tooth design in combination with a special setting is the warranty for an optimum in cutting performance and tool life.
Superior, because:
The combination of tooth design and setting allow user to cut shor chipping, difficult to machine materials in big dimensions in a short time for a low cost price.
Engineered for:
• rust and acid-resistant steels
• steels with high tensile strenght
• nickel base alloys
• brittle and annealed materials
• short-chipping materials
MPM - BIGDIM LC
Special blade for BIG DIMensions, MPM-steel.
New developed tooth design in combination with a special setting is the warranty for an optimum in cutting performance and tool life.
Superior, because:
The combination of tooth design and setting allow user to cut difficult to machine materials in big dimensions in a short time for a low cost price.
Engineered for:
• rust and acid-resistant steels
• steels with high tensile strenght
• nickel base alloys
• long-chipping materials
• tough materials
MPM - High Performance
Top performance blade with borazon-ground teeth. Extra wear resistant.
16° positive rake angle and special setting geometry; MPM-steel
Superior, because:
Borazone ground teeth for the best accurancy cutting finish with a bi-metal MPM blade you can get.
Because of the optimum in chip division (trapeze tooth form) in combination with extreme positive tooth design the fastest cut you can do with a bi-metal MPM blade.
Engineered for:
• rust- and acid-resistant steels
• nickel base alloys (Inconel, Hastelloy, Nimonic)
• titanium and special bronze materials
• steels up to 50 HRc.
